This mount is supplied with a 16mm Stud and a Core of 50 SDH-A.

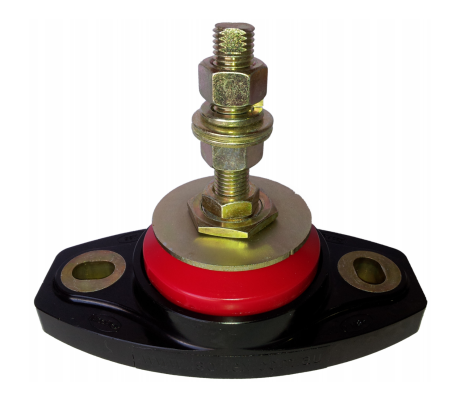

Please note, the mount pictured has a 60 SDH-A - the model supplied will have a Yellow Polymer Core.
S Type adjusting stud engine and machinery mounts are designed specifically for marine, high performance and other thrust load installations where height adjustment is required.
These mounts are complete with high tensile studs, are fail safe, ie. captured design and tested to a minimum 6G force loading in thrust, axial, lateral and inverted directions and fitted with overload snubbers.
Mounts are fitted with patented 360 degree integral thrust ring for enhanced stability. All metal components are zinc plated to ASTM B633 SC3 standard.
A detailed datasheet for this product can be downloaded here: datasheet
